Hiab Crane truck hire

Hino FY 3248 ProShift 16 Air

Machinery Relocations have recently added a specialised Hiab Crane truck to their ever-expanding fleet – The new Hiab truck is a Hino FY 3248 ProShift 16 Air – riding on air suspension and automatic to provide smooth and safe transport. This Hiab is the very latest in small crane technology and delivers the following features:

• Palfinger Hiab Crane.
• PK 41002 EH High performance.
• The truck is on air ride suspension and automatic to provide smooth and safe transport.
• Emissions meet Euro 5 standards.
• Due to the large crane this truck will have a payload of 8 tonne.
• The Palfinger Hiab crane will lift 6 tonne at 4 metres and 1750 KG. at 16 metres.
• 2 manual extensions will push the Hiab crane reach out to 20 metres.
• It is also fitted with a 2.5 tonne wire rope winch.
• A workman basket available for additional access.

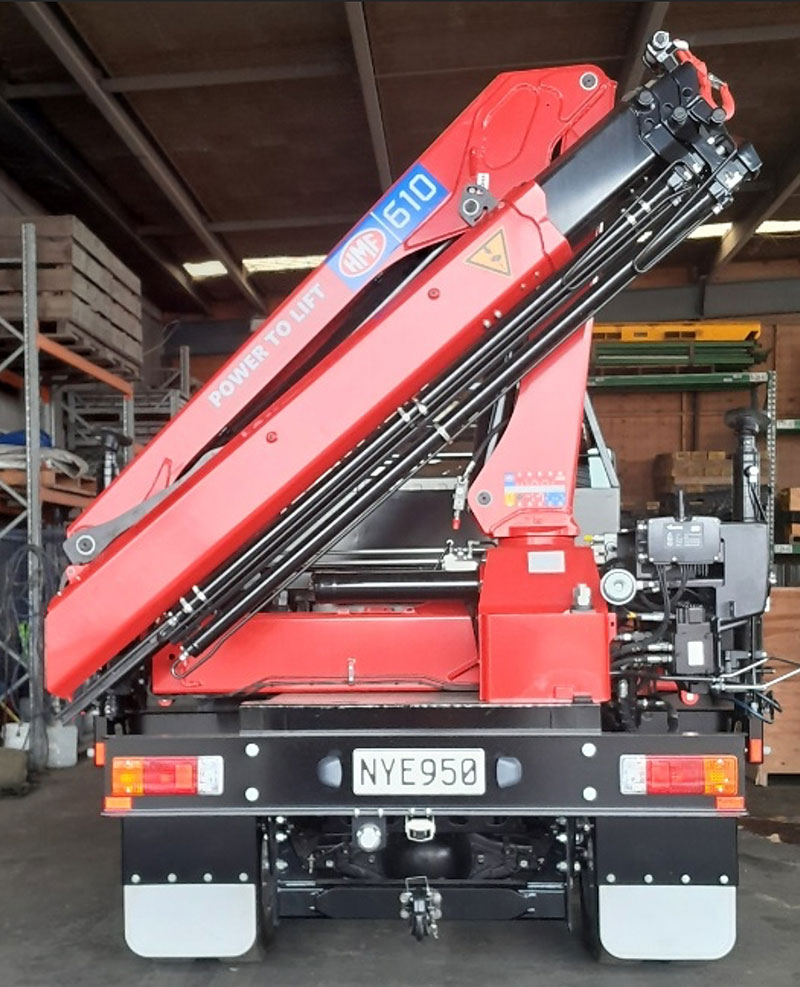

Hino 300 4×4 with HMF Crane

Machinery Relocations have recently added the Hino 300 4×4 with HMF Crane to their ever-expanding fleet – see below for the features:

• Payload: 1800kg

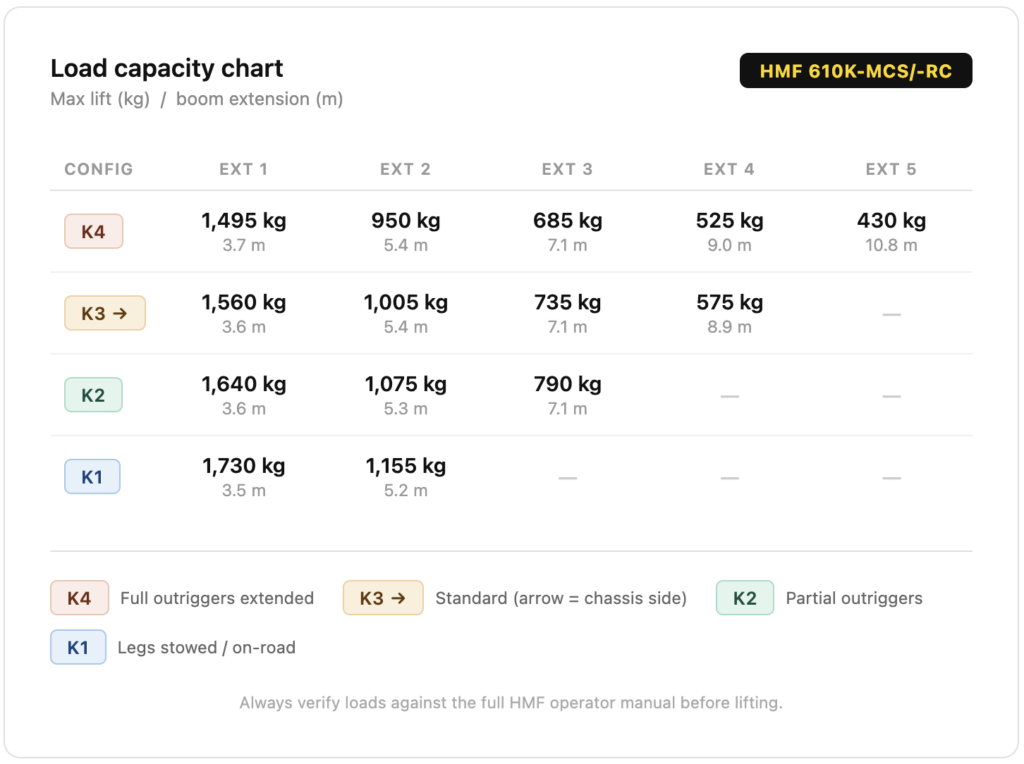

• Crane capacity:
  o 1500 KG at 3.6m
  o 500 KG at 9.0m.
• Heights:
  o Deck: 1.1m
  o Folded crane arm: 2.95m
  o Front frame: 2.7m
• Deck: 7.04m2
  o 3.2m long x 2.2m wide
• Small – ideal for jobs on difficult terrain.
• 4-wheel drive and low ratio to enable access in and out of difficult, tight or steep locations.
• Crane is a HMF 610 K3.
• Remote control. Allow the crane operator to move anywhere in the operational area.
• Euro 5 compliant to protect our environment.
• It is also used to train our employees in all aspects of our machinery moving in conjunction with Road To Success, Te ara ki tua.

Contact us to discuss your requirements.
